Slican NCP – a system of great capabilities
The Slican NCP is an IP telecommunications platform that supports up to 500 concurrent voice calls and 40 video connections for up to 10,000 users. With its excellent communication quality and high flexibility, the system provides a foundation for building secure VoIP solutions.
PUTTING YOUR NEEDS ABOVE ALL ELSE
Slican NCP is a unified communications system with wide range of services: contact center and call center, communicator, chat, sms sending, automatic generation of announcements Text2Speech, calls recording, voice2mail, fax2mail, conferences and video conferences, manageable call queuing and other. It can accommodate businesses and institutions with branches located at multiple locations. Effective management of system elements and services within a multi-branch company is ensured by flexible software with LAN and WAN connectivity and INT-special separated network connected only for GWX shelves.Slican ConfigWEB which readable iterface is a efficient tool for build and configure your own system via a web browser.
Comfort of communication
Packet-based data transmission, quick communication between branches and additional connection routes for telecommunications traffic in the event of failure will ensure top-level customer service. Call histories can be analysed to identify and resolve performance bottlenecks. Quick and simple access to the exchange via Ethernet allows for immediate response and improves system management. System security is based on video and voice connection encryption, (TLS/SRTP) and redundancy (NCP-CM400P and NCP-CM600P), the doubling of the system components to ensure continuous operation even during a technical failure.
Voice calls as well as billing data, can be recorded. Server provides LDAP protocol support with access to the phone book in the server. Other features include integrated CallCenter system, communicator MessengerCTI for easy voice and messaging a multi-purpose voicemail system (voice2mail) and advanced IVR. The integrated management of multiple system components from a single location with the ConfigWEB tool will make life easier for any administrator.

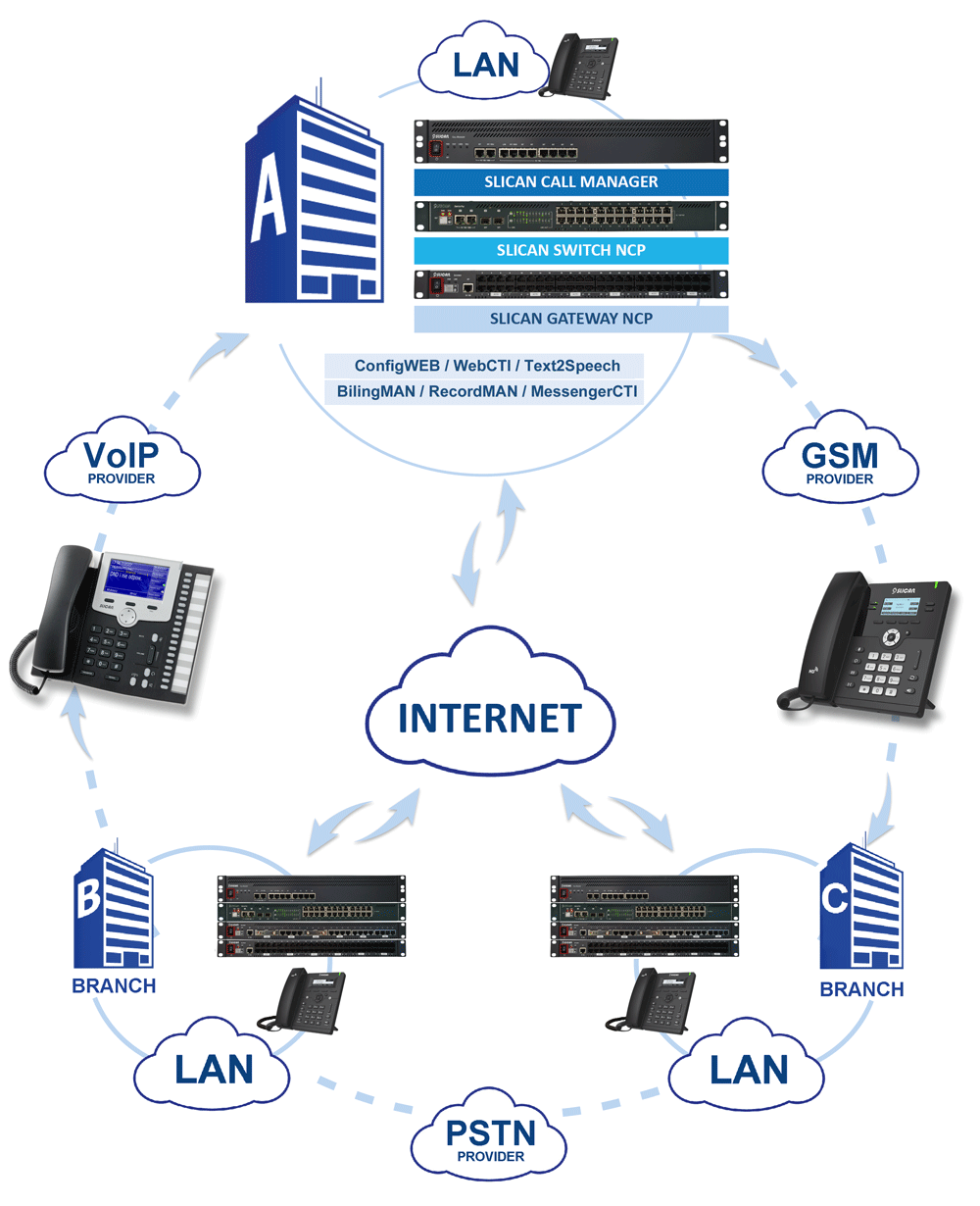

System elements
Call Manager
The reliability and performance of the whole Slican NCP system is ensured by the Call Manager, a central unit that offers unified communications regardless of the link type used. With traditional connectivity interfaces (TDM) and gateways, it is possible to provide ISDN, GSM and analog (FXO) connectivity alongside IP connectivity. The gateway can be customized by connecting system terminals (CTS) and analog terminals (FXS). Thanks to LAN connectivity, the multi-purpose Slican PhoneCTI application and other softphone solutions can be used. Calls, conferences and video connections can be recorded with the internal integrated call recording system.
Depending on telephone traffic intensity and the user’s needs, 3 versions of Call Manager are available.
Serwer Slican NCP-CM300P / CM300P.1BC
- 40xCalls including 3xVideo Calls
- 300xUsers including: up to 200-SIPuser and up to 64xCTS
- 100xWebCTI/PhoneCTI
- 40xRecording Channels
- 58xTrunk GSM
- 1xTrunk ISDN-E1
Serwer Slican NCP – CM400P.1BC
- 100xCalls including 20xVideoCalls
- 1000xUsers including: up to 1000-SIPuser and up to 400xCTS
- 400xWebCTI/PhoneCTI
- 100xRecording Channels
- 120xTrunk GSM
- 6xTrunk ISDN-E1
- 2xGbE-INT
- emergency power supply
Serwer Slican NCP – CM600P.1BC
- 500xCalls including 40xVideo Calls
- 10.000xUsers including: up to 10.000-SIPuser and up to 800xCTS
- 800xWebCTI/PhoneCTI
- 300xRecording Channels
- 120xTrunk GSM
- 13xTrunk ISDN-E1
- 2xGbE-INT
- emergency power supply
Network switches

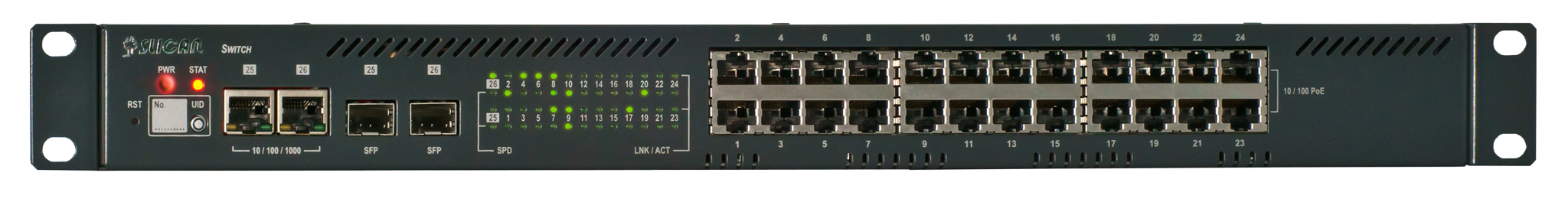

Slican NCP – SW242S.P150
Plug-and-play manageable network switch, startup configuration for first start is not required. VLAN support, MAC Security and support for Spanning Tree increase functional advantages of device in network environment. LEDs indicate status and activity of ports and allow for fast diagnostics and remove any problems. Switch management is available through Web browser. Power supplies of NCP-SW242S.P150 switch according PoE standard on all 24 ports.
- built-in optical ports for connecting to other devices via optical fiber
- transmission speed: 10Mbit/100Mbit/1Gb/s
- auto MDI/MDI-X functionality on Ethernet ports
- power supply – PoE
- remote management via Web browser
- possible integration with NCP-PBX system
Available network ports:
- 24 ports (RJ-45) with auto-negotiation (10/100Mbps) and with PoE power in IEEE802.3af standard
- (RJ-45) 2 ports or 2 ports SFP with auto-negotiation (10/100/1000 Mbps)
Power supply:
- power from the AC mains ~ 230V, 50Hz
- emergency power supply
Slican NCP – SW242S
Plug-and-play manageable network switch, startup configuration for first start is not required. VLAN support, MAC Security and support for Spanning Tree increase functional advantages of device in network environment. LEDs indicate status and activity of ports and allow for fast diagnostics and remove any problems. Switch management is available through Web browser.
- built-in optical ports for connecting to other devices via optical fiber
- transmission speed: 10Mbit/100Mbit/1Gb/s
- auto MDI/MDI-X functionality on Ethernet ports
- remote management via Web browser
- possible integration with NCP-PBX system
Available network ports:
- 24 ports (RJ-45) with auto-negotiation (10/100Mbps)
- (RJ-45) 2 ports or 2 ports SFP with auto-negotiation (10/100/1000 Mbps)
Power supply:
- power from the AC mains ~ 230V, 50Hz
- emergency power supply – option
- optional PS connector – BATTERY IN 12V
Gateway – a wealth of possibilities
The gateway can be predefined or customised to the user’s needs. Predefined units include gateways for connecting a specific number of subscribers, e.g. 24, mixed gateways for digital (system) subscribers and regular subscribers, as well as ISDN PRI and BRI or GSM gateways. Depending on the selected Call Manager, up to 127 Gateways can be connected. The whole system is integrated via a LAN network using switches.
Now every customer has access to a hardware and software offer that enables them to utilise the full potential of today’s information and communications technology.
Services

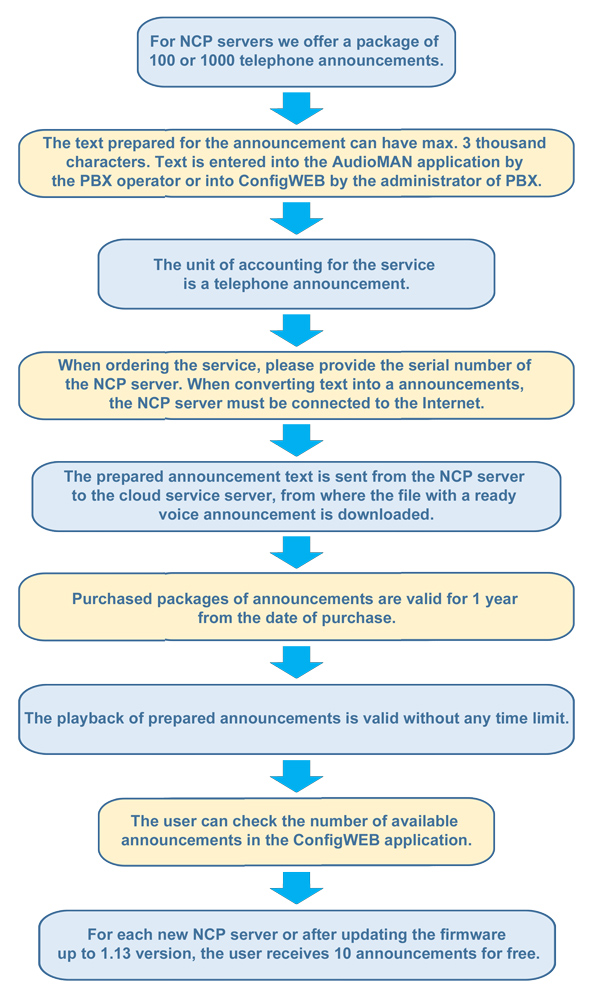

Text2Speech is an automatic service of telephone announcement generation for your NCP server.
Quickly, conveniently and in quantity packets adjusted to your requirements.
Generation of announcements is available in Polish and English language.
ATTENTION: Text2Speech service is available only for NCP servers with firmware 1.13 or higher.
Remember to update your NCP server.
Licenses – system operation
- The main advantage of the SLICAN NCP licensing model is the flexible scalability of the system (e.g. up to 10,000 users), often without the need for changes to the hardware configuration. Our comprehensive and cost-effective approach to the customer’s needs guarantees the effectiveness of every project. It is the customer who decides what licenses to purchase and when, in order, for instance, to extend user capacity, increase functionality, and improve the performance of the system.License types in Slican NCP exchanges:
The Slican NCP licensing model grants permissions / determines which software features the purchaser can use, and includes 4 license types:
- base licenses, specifying the maximum number of users and concurrent calls
- channels licenses that specify the number of call recording channels, conference participants or additional concurrent connections
- users licenses, e.g. Call Center Agent, Call Center Queue or Voice2mail.
- server licenses (extending the system’s capabilities) for all the exchange users, e.g. firmware updates, cross-linking or redundancy (depending on the selected base license)
Things to remember:
- licenses are assigned to a specific SLICAN hardware platform rather than the company/customer
- firmware versions are associated with permissions, which are automatically updated during the firmware update
- licenses are granted for an indefinite time period
